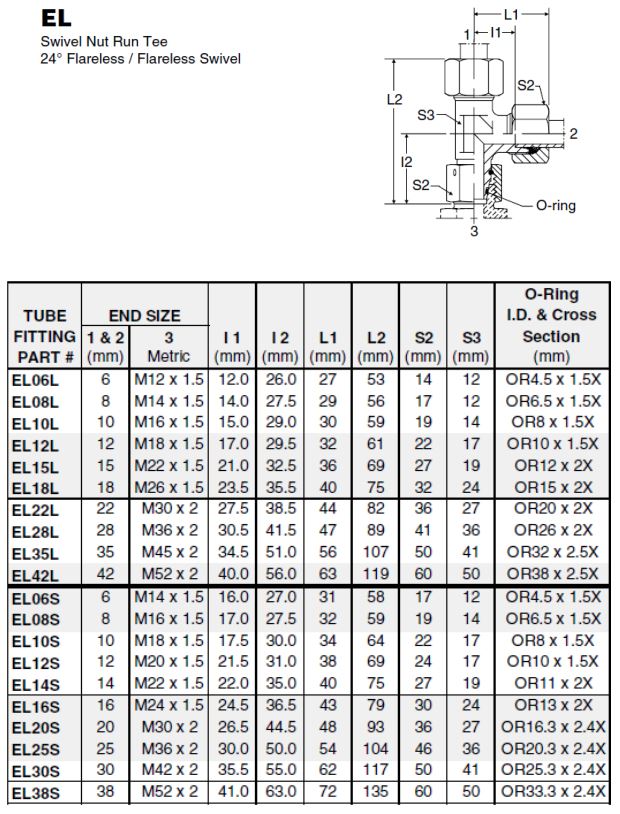

Stainless Steel Metric Run Tee – Heavy Series – 12mm Male x 12mm Male x 12mm Female Swivel
Also known as: Run Tee Swivel Connector, Swivel Nut Run Tee, Adjustable Barrel Run Tee-Piece, EO 24° Cone End/EO 24° DKO Swivel
End 1 Tube Fitting O.D. Size: 12mm
End 1 End Thread: M20x1.5
Tube End 1 Metric Male includes a nut and olive – 24° Cone
End 2 Tube Fitting O.D. Size: 12mm
End 2 End Thread: M20x1.5
Tube End 2 Metric Male includes a nut and olive – 24° Cone
End 3 Tube Fitting O.D. Size: 12mm
End 3 End Thread: M20x1.5
Tube End 3 Metric Female Includes Swivel Nut with O-Ring – 24° Cone
Series: Heavy Series
Specifications: DIN EN ISO 8434-1, DIN, ISO 8434, ISO 8343
Material: Stainless Steel
Seal Type: O-Ring
Seal Material: FKM / Viton
Product Type: Straight Hydraulic DIN Fitting
Fitting Style: Adjustable Position
Fitting Configuration: Tube to Swivel
Shape: Run Tee
Pressure Rating: 630Bar / 9137Psi
Max Temperature: 400°C
Min Temperature: -60°C
Fluid Type used for: Hydraulic fluids, Chemicals, Fuels, Gases and Steam
Industries used for: Agriculture, Automotive, Construction, Industrial Manufacturing Equipment, Marine, Material Handling and Transportation
Other known codes: EL12S-71, EL12SOMD71, CD-20RN, P-ELVD 12 S, WAL620587, CFT-EL 12S, ERTA-12S
We have loaded our most commonly sold Stainless Steel Adapters, so not all sizes unfortunately, however if you are needing a size not loaded you can enquire instore (for a quote and eta) 021 511 0590 or if you prefer ordering online, email onlinestore@fluidco.co.za the sizes needed and we will confirm cost and eta for you to order online.
PLEASE NOTE THAT COURIER COST MAY NOT BE 100% ACCURATE ON HOSE ASSEMBLIES OR BULK, IT IS ADVISED TO REQUEST COURIER COST SEPERATE UPON ORDERING. YOU ARE WELCOME TO CALL OR EMAIL TO GET ACCURATE COSTING ON COURIER PRIOR TO ORDERING.
Items in stock may sometimes differ slightly from those in the pictures, but they are functionally the same.
